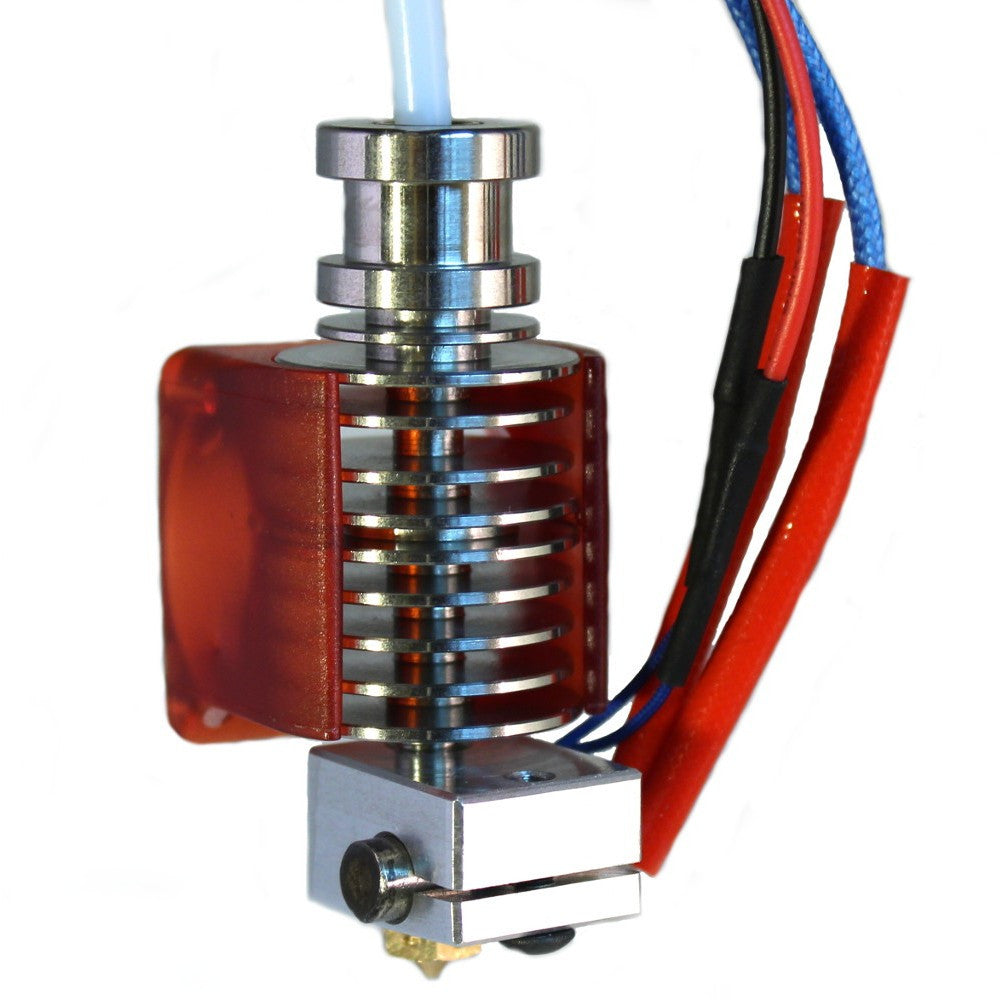

E3D Lite6 HotEnd Full Kit - 1.75mm Universal (with Bowden add-on) (12v)

€44.99

Genuine E3D "mostly metal" hotend. E3D answer to the need for low-cost, yet reliable hotend.

So how does it compare?

  E3D-v6
E3D-Lite6

Price

  From €66.00 From €35.99

Print Performance

Max Temp

>400°C
(Any thermoplastic)

245°C
(e.g. PLA & ABS)

Speed 20-100mm/s 20-50mm/s
Ease of Use Intermediate Easy

Compatibility

Filament DIameter 1.75mm or 3mm 1.75mm
Bowden Yes Yes
Volcano Yes Yes
V6-Nozzles Yes Yes



Kit Includes:

Metal parts

  • 1 x Stainless Heatsink (including brass embedded bowden coupling ring)
  • 1 x Brass Nozzle (0.4mm)
  • 1 x Aluminium Heater Block

Electronics

  • 1 x 100K Semitec NTC thermistor
  • 1 x 25W Heater Cartridge (12v)
  • 1 x 30x30x10mm fan (12v)
  • 1 x 1m of Thermistor wire
  • 4 x 0.75mm Ferrules - for Solder-Free Wire Joins (You

Fixings

  • 4 x Plastfast30 3.0 x 16 screws to attach the fan to the fan duct
  • 1 x M3x3 socket dome screw and M3 washer to clamp thermistor
  • 1 x M3x10 socket dome screw to clamp the heater block around the heater cartridge
  • 1 x Fan Duct (Injection Moulded Red PC)
  • 1 x Small Black Plastic Collet (For securing PTFE tubing into embedded bowden coupling installed in heatsink)​

  • 800mm PTFE Bowden tubing
  • 1 Screw in coupler for extruder end of tubing

For more details click here.
